BSMJ シリーズ 分相補償三相自己修復シャント コンデンサ

In modern power systems, improving power factor and optimizing power quality are key measures for enterprises to achieve energy conservation, emission reduction, and ensure stable equipment operation. As a professional manufacturer of power capacitors, Geyue Electric is committed to providing customers with efficient and reliable low-voltage reactive power compensation solutions. In the field of low-voltage reactive power compensation, the BSMJ series square-box type self-healing shunt capacitors are one of our core products. Among them, the BSMJ series three-phase compensation three phase self-healing shunt capacitors and the BSMJ Series Split-Phase Compensation Three Phase Self-healing Shunt Capacitors are the two mainstays for meeting different needs. A deep understanding of the differences between the two will help you choose the most accurate and economical compensation solution for your power system.

Topological Structure: Overall Balance vs. Fine Phase Separation

The BSMJ series three-phase compensation three phase self-healing shunt capacitor follows a traditional three-phase balanced reactive power compensation concept. Internally, three capacitor units are connected in a star or delta electrical configuration and encapsulated within a unified square-box housing. The entire capacitor is connected as a single unit to the three-phase busbar, synchronously providing equal reactive power compensation to the three-phase loads. The advantages of this structure are its compact design, simple wiring, and economical initial cost. It is suitable for industrial scenarios where the three-phase load is highly balanced and the reactive power requirements of each phase are essentially the same, such as power systems dominated by large three-phase motors.

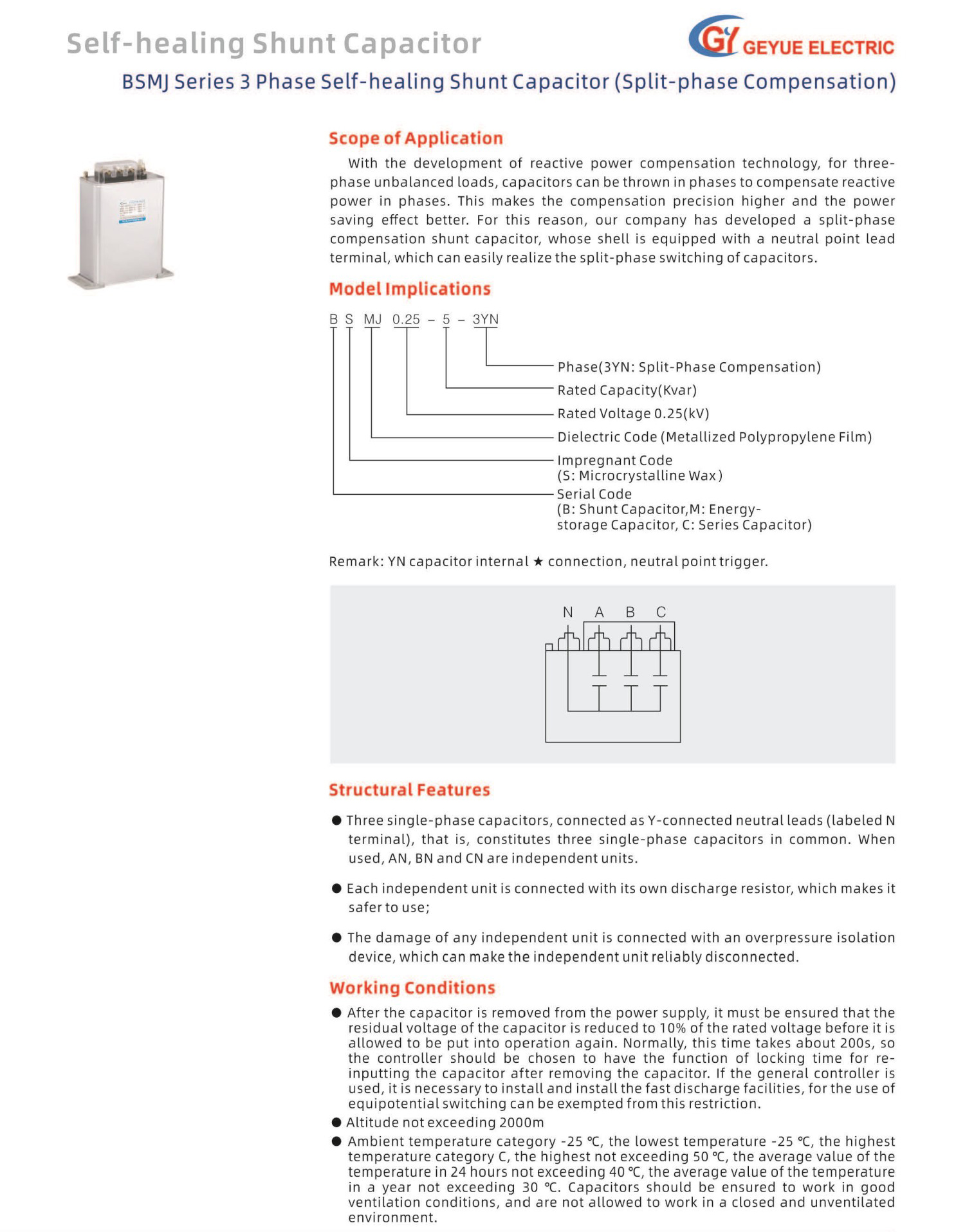

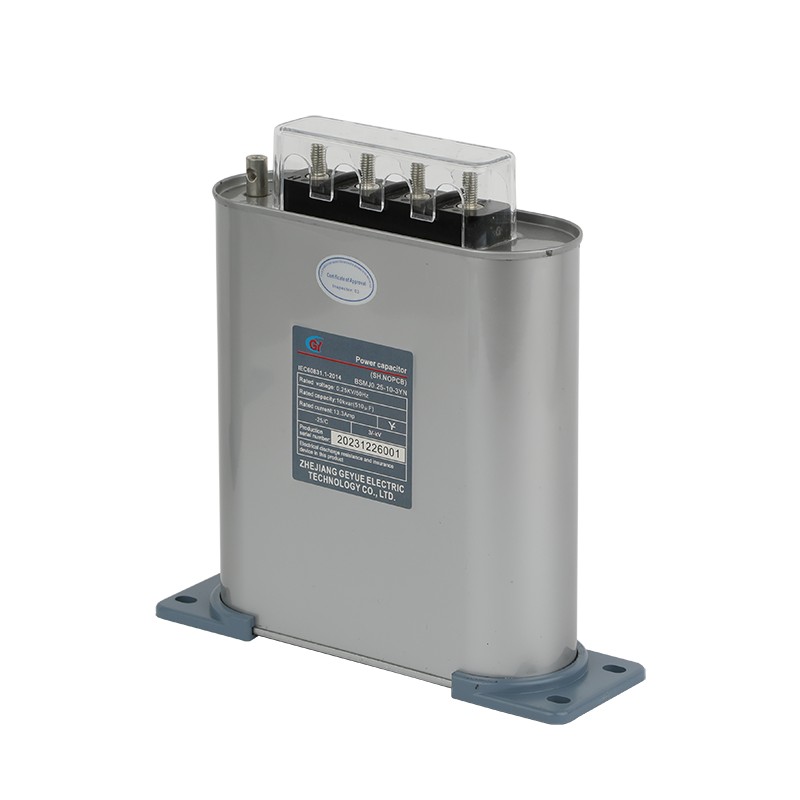

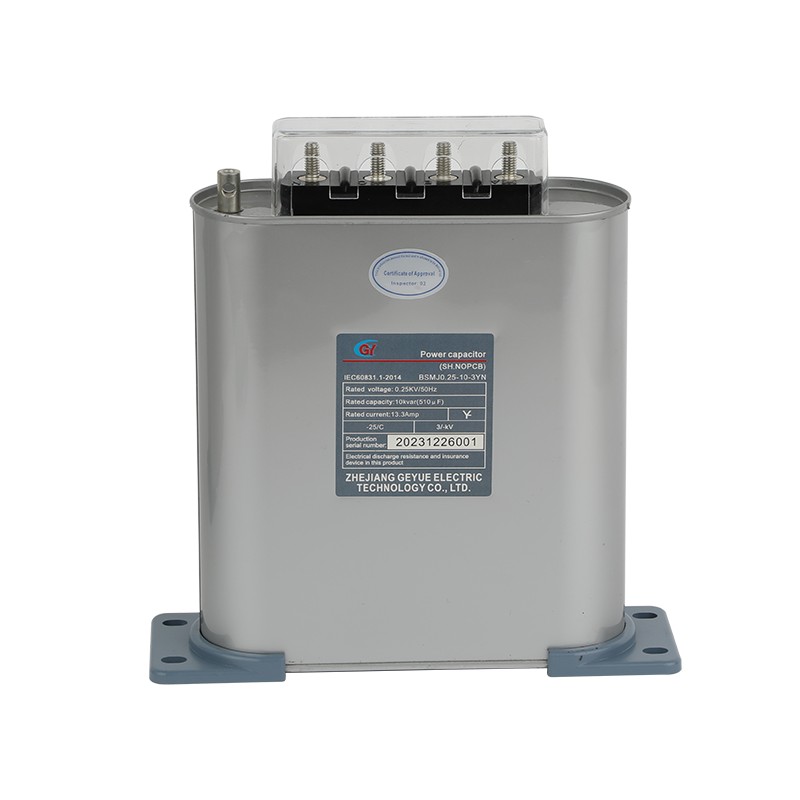

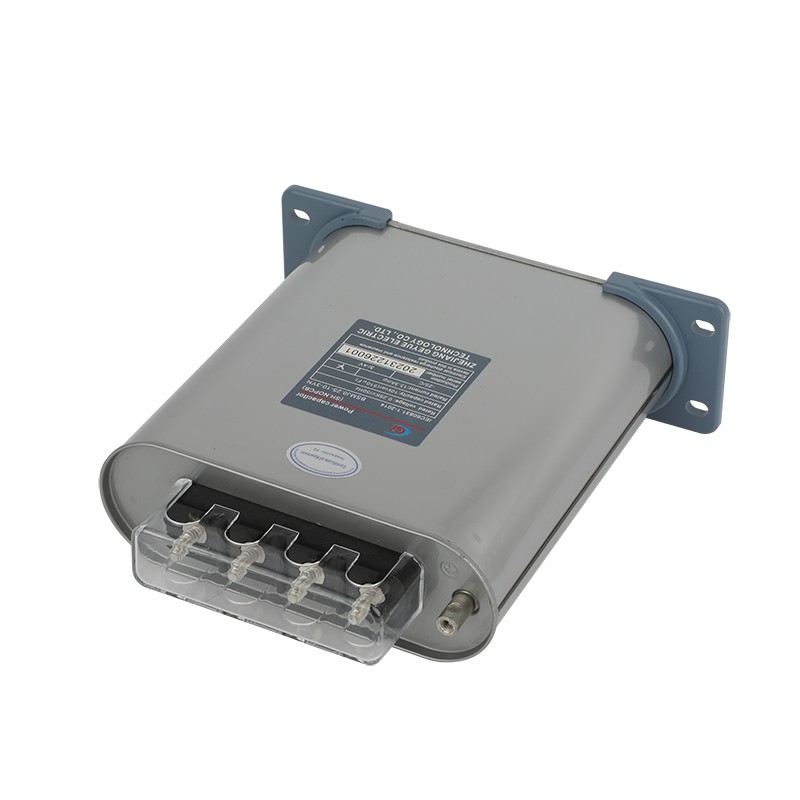

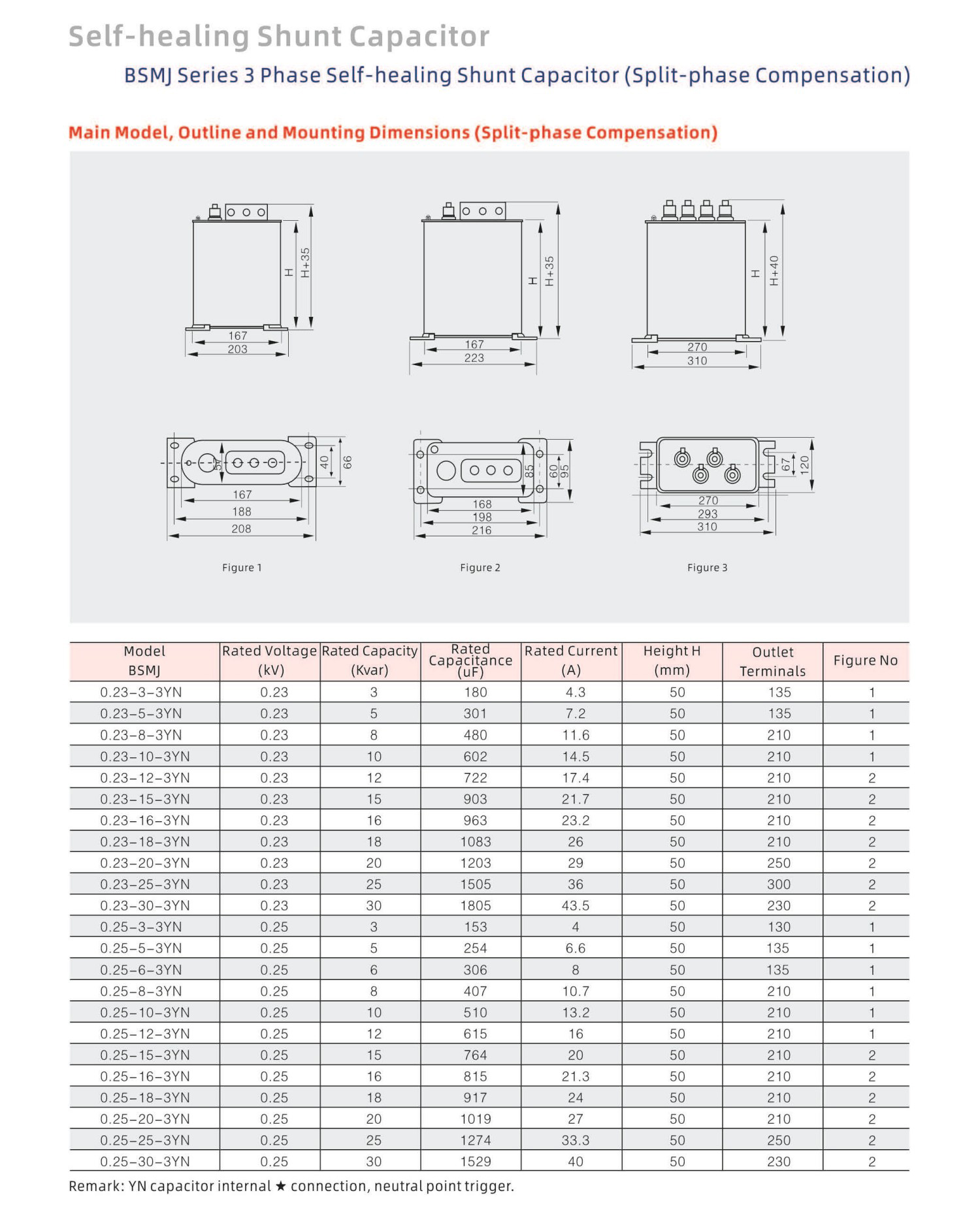

In contrast, the BSMJ Series Split-Phase Compensation Three Phase Self-healing Shunt Capacitor represents a more refined reactive power compensation strategy. Its essence lies in integrating three independent single-phase capacitor units within a single box-shaped physical casing. These three single-phase capacitor units are electrically independent, allowing them to be connected separately between phases A, B, and C of the power grid and the neutral line. This structure endows the BSMJ Series Split-Phase Compensation Three Phase Self-healing Shunt Capacitor with a powerful capability: it can independently and unequally compensate for the actual reactive power deficit of each phase.

Compensation Approach: Unified vs. Independent

Due to these fundamental topological differences, the applicable scenarios and compensation effects of the BSMJ series three-phase compensation three phase self-healing shunt capacitors and the BSMJ Series Split-Phase Compensation Three Phase Self-healing Shunt Capacitors are distinctly different. The BSMJ series three-phase compensation three phase self-healing shunt capacitors function like offering a "standard meal" to passengers on an airplane, efficient and simple when the load is balanced. However, in today's power environments with a large number of mixed single-phase and three-phase loads, such as commercial buildings, municipal facilities, communication base stations, and factory workshops with a large number of single-phase electrical equipment, the three-phase loads often exhibit significant imbalances. Forcing a three-phase compensation method in such cases may result in over-compensation or under-compensation of certain phases, not only failing to optimally improve the power factor but potentially even causing further imbalances in the grid voltage, affecting the normal operation of sensitive equipment.

The BSMJ Series Split-Phase Compensation Three Phase Self-healing Shunt Capacitors were developed to address this pain point of inaccurate compensation caused by traditional three-phase compensation capacitors in modern power consumption scenarios with unbalanced three-phase loads.. Like a "nutritionist," the BSMJ Series Split-Phase Compensation Three Phase Self-healing Shunt Capacitor can tailor a compensation solution for each phase. Through its accompanying intelligent controller with phase-by-phase control, the low-voltage reactive power compensation system can monitor the reactive power demand of each phase in real time and independently switch the capacitor units of each phase. This ensures that regardless of load changes, each phase receives accurate and appropriate reactive power compensation, thereby achieving optimal power factor both overall and locally, effectively improving three-phase imbalance, enhancing voltage quality, maximizing energy savings, and extending equipment lifespan.

Control Architecture: Centralized vs. Distributed

The fundamental differences in internal structure and compensation principle between BSMJ series three-phase compensation three phase self-healing shunt capacitors and BSMJ Series Split-Phase Compensation Three Phase Self-healing Shunt Capacitors directly affect the overall design of low-voltage reactive power compensation cabinets. The three-phase compensation scheme is based on three-phase reactive power monitoring and uses a controller for unified switching, resulting in a relatively simple main circuit structure. The split-phase compensation scheme, however, is much more complex: it requires a dedicated controller with phase-by-phase sampling and output capabilities, and the connection lines for each phase capacitor must be independently arranged. Although the low-voltage reactive power compensation system using the split-phase compensation scheme is more intricate and complicated, it can indeed achieve on-demand and precise reactive power compensation, thereby bringing significantly better power quality improvements to the entire power system.

Geyue Electric: Forging a Reliable Foundation with Outstanding Craftsmanship

Whether you need robust and balanced BSMJ series three-phase compensation three phase self-healing shunt capacitors or precise and flexible BSMJ Series Split-Phase Compensation Three Phase Self-healing Shunt Capacitors, Geyue Electric remains a trustworthy and reliable supplier. We understand that self-healing shunt capacitors, as core components for long-term reactive power compensation, directly impact the safety and efficiency of the entire power system. Geyue Electric's BSMJ series self-healing shunt capacitors strictly adhere to national standard GB/T12747-2004 and International Electrotechnical Commission (IEC) standard 60831, safeguarding superior power factor optimization from the source.

As a manufacturer deeply rooted in the low-voltage reactive power compensation industry for many years, Geyue Electric integrates R&D, production, and service into one, striving to develop industry-leading low-voltage reactive power compensation technology. We not only provide high-quality products but also leverage our profound technical expertise to offer free professional reactive power compensation solution consultations. We thereby promise that we will use our unwavering commitment to power quality to ensure your low-voltage reactive power compensation system delivers long-term, stable energy savings.
